Stemware production line

Quantity : 1 Pcs
Reference Nr :
  • 05-27-02-002
Description :

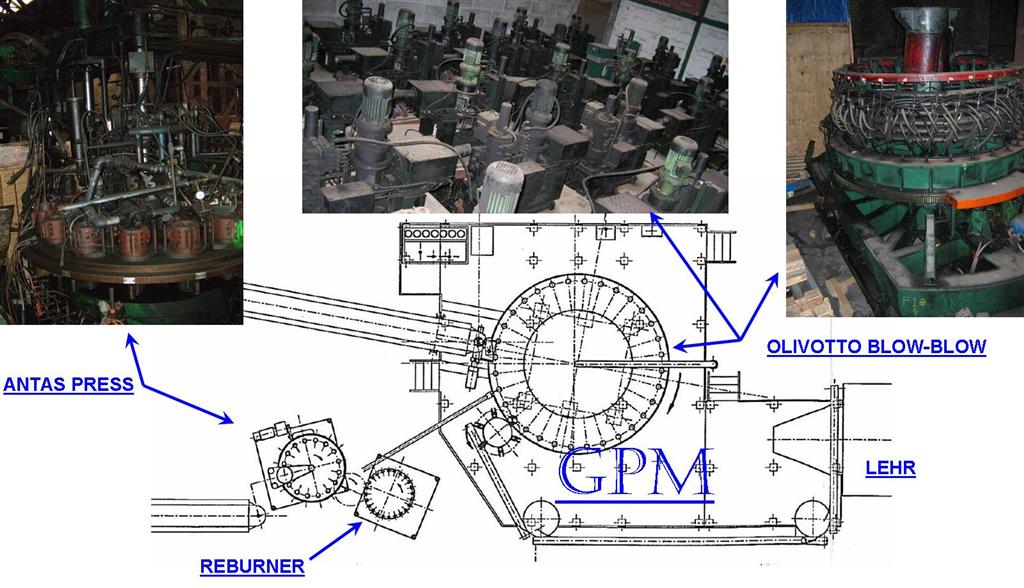

  • Stemware production line including :
    • A. OLIVOTTO type E32C :
      - Glass Blow - blow machine with rotation table (32 sections)
      - MFG Year : 1996
      - Machine dimensions (installed) : 8450 x7350 x H4100mm
      - Machine overall weight : Approx. 24000Kg
      - Installed Power : 55kW
      - Produced articles : max diam : 160mm/max height : 390mm
      - All manuals available in English
      - All drawings (pdf) are available
    • B. ANTAS PRESS PV16/3343
      - Presssing line for production of stems
      - MFG Year : 1996
      - Installed Power : 120 kVA
      - Produced articles : min diam : 70mm/ max (diam x h) : 140x 125mm (with openable moulds) and 105x125 mm (with semi-openable moulds)
      - Production max speed : Press : 45cpm / Reburner : 70cpm
    • C. REBURNER RRC 165/2
      - For the finishing of the articles produced by the Antas press described above
      - MFG Year : 1996
      - Produced articles : max (diam x h) : 140x125mm
      - Max speed : 70cpm
    • D. CONVEYORS, LOADERS AND UNLOADERS
      - For interconnection of the above machines
Last Update Of This Product : 8 September 2008
