Tableware Production Machines

SA36 Stemware Sealing Machine (OCMI)

Reference Nr :
  • 05-89-00-001
Description :
  • SA36 Stemware Sealing Machine (OCMI) - complete production line, consisting off:
  • 1 Automatic stemware sealing machine type SA36 with the following characteristics:
  • —> Overall Diameter 2.500 mm
  • —> Weight 7.000 kg
  • —> Max. Mechanical speed 40 Pcs/min
  • —> No. Of positions for loading and unloading 11
  • —> No. Of working positions 25
  • —> Indicative Gas Consumptions 5 m3/h
  • —> Indicative Oxygen Consumptions 5 m3/h
  • —> Indicative Air Consumptions 6 m3/h
  • —> Installed Power 7 KW
  • 1 Automatic loader for stems
  • 1 Automatic loader for bowls
  • 1 Automatic unloader for sealed stemware
  • 1 pre-heating tunnel for stems, complete with accessories
  • 1 pre-heating tunnel for bowls, complete with accessories
  • 1 conveyor for finished stemware unloading
  • 1 cross-conveyor
  • 1 lehr stacker type Corvo
  • 1 set of suggested spare parts for the sealing machine SA36 and the pre-heating tunnels.
Remarks :
  • ALL EQUIPMENT IS NEW AND STILL IN THE ORIGINAL PACKING

Last Update Of This Product : 11 October 2005

Stemware production line

Reference Nr :
  • 05-27-02-002
Description :
  • Stemware production line including :

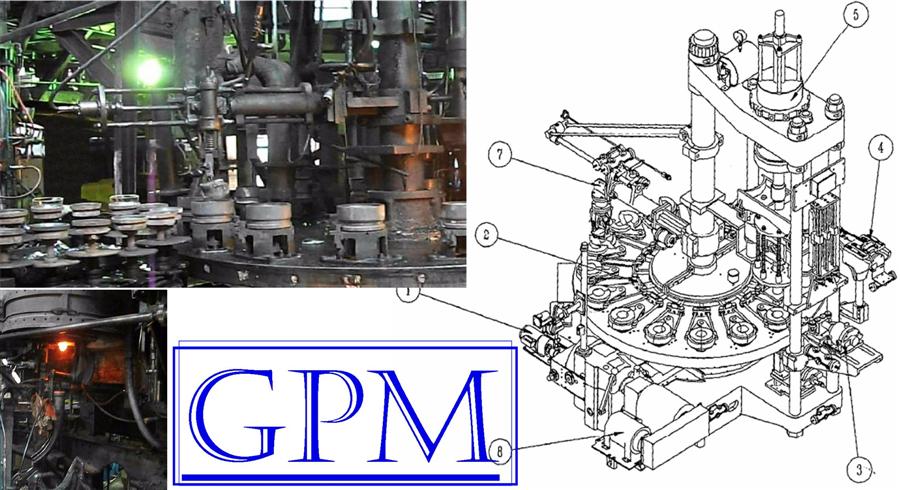

    • A. OLIVOTTO type E32C :
      - Glass Blow - blow machine with rotation table (32 sections)
      - MFG Year : 1996
      - Machine dimensions (installed) : 8450 x7350 x H4100mm
      - Machine overall weight : Approx. 24000Kg
      - Installed Power : 55kW
      - Produced articles : max diam : 160mm/max height : 390mm
      - All manuals available in English
      - All drawings (pdf) are available
    • B. ANTAS PRESS PV16/3343
      - Presssing line for production of stems
      - MFG Year : 1996
      - Installed Power : 120 kVA
      - Produced articles : min diam : 70mm/ max (diam x h) : 140x 125mm (with openable moulds) and 105x125 mm (with semi-openable moulds)
      - Production max speed : Press : 45cpm / Reburner : 70cpm
    • C. REBURNER RRC 165/2
      - For the finishing of the articles produced by the Antas press described above
      - MFG Year : 1996
      - Produced articles : max (diam x h) : 140x125mm
      - Max speed : 70cpm
    • D. CONVEYORS, LOADERS AND UNLOADERS
      - For interconnection of the above machines
Last Update Of This Product : 8 September 2008

Burn-Off machine - 18 station

Reference Nr :
  • 05-96-02-001
Description :
  • Burn-Off, with specifications:
    • Complete machine 18 stations
    • Pitch Circle Diameter: 2400mm
    • Article diameter: 230 – 60mm
    • Raw glass height: 300mm
    • Glass wall thickness: 1.5-4mm
    • Speed: up to 40 articles/min
  • Manufacturing Year: 1994
Remarks :
  • Very attractive price!
  • Easy to operate, to maintain and for job change
  • Very economical operating cost
  • Also available: associated Annealing lehr (see article Nr. 06-96-03-001)

Last Update Of This Product : 24 January 2011

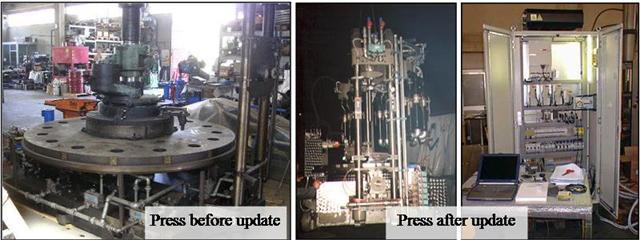

Glass Press - 16 station (Lynch)

Reference Nr :
  • 05-96-01-001
Description :
  • Press Model MDP-16-38, including:
    • Complete machine 16 stations, mould radius 38”
    • Cylinder: 5” Bore; with 5.25” min and 15” max stroke
    • Speed: up to 40 cut/min
    • Drive mechanism with P.I.V. Gearbox + “Maltese Cross” for indexation.
  • Manufacturing Year: 1994
Remarks :
  • Very attractive price!
  • Also available: associated Burn-Off (see article Nr. 05-96-02-001)

Last Update Of This Product : 7 January 2011
