Container Production Machines

Delivery Maul 8s 5" DG: throughs No : 2 and No 1 1/2

Reference Nr :
  • 05-31-00-006
Description :
  • Delivery Maul 8s 5" DG: throughs No : 2 and No 1 1/2, including:
  • 2 x N2 - Upper - Sec1 825-5027-144 Original
  • 1 x N2 - Upper - Sec1 825-5027-144 Metal
  • 3 x N2 - Upper - Sec2 825-5027-145 Original
  • 1 x N2 - Upper - Sec2 825-5027-145 Metal
  • 3 x N2 - Upper - Sec3 825-5027-146 Original
  • 1 x N2 - Upper - Sec3 825-5027- Metal
  • 3 x N2 - Upper - Sec4 825-5027-147 Original
  • 3 x N2 - Upper - Sec5 825-5027-148 Original
  • 1 x N2 - Upper - Sec5 825-5027-148 Metal
  • 3 x N2 - Upper - Sec7 825-5027-149 Original
  • 1 x N2 - Upper - Sec7 825-5027-149 Metal
  • 3 x N2 - Upper - Sec8 825-5027-150 Original
  • 3 x N2 - Upper - Sec6 825-5027-157 Original
  • 1 x N2 - Upper - Sec6 825-5027-157 Metal
  • 4 x N2 - Lower - Sec1 & 8 825-5027-151 Original
  • 2 x N2 - Lower - Sec1 & 8 825-5027-151 Metal
  • 6 x N2 - Lower - Sec2 & 7 825-5027-152 Original
  • 1 x N2 - Lower - Sec2 & 7 825-5027-152 Metal
  • 5 x N2 - Lower - Sec3 & 6 825-5027-153 Original
  • 1 x N2 - Lower - Sec3 & 6 825-5027-153 Metal
  • 6 x N2 - Lower - Sec4 & 5 825-5027-154 Original
  • 2 x N2 - Lower - Sec4 & 5 825-5027-154 Metal
  • 2 x N1 1/2 - Lower - Sec1 & 8 825-5027-184 Original
  • 2 x N1 1/2 - Lower - Sec2 & 7 825-5027-185 Original
  • 1 x N1 1/2 - Lower - Sec2 & 7 825-5027-185 Metal
  • 2 x N1 1/2 - Lower - Sec3 & 6 825-5027-186 Original
  • 1 x N1 1/2 - Lower - Sec3 & 6 825-5027-186 Metal
  • 2 x N1 1/2 - Lower - Sec4 & 5 825-5027-193 Original
  • 1 x N1 1/2 - Upper - Sec2 825-5027-177 Original
  • 1 x N1 1/2 - Upper - Sec3 825-5027-178 Original
  • 1 x N1 1/2 - Upper - Sec4 825-5027-179 Original
  • 1 x N1 1/2 - Upper - Sec4 825-5027-179 Metal
  • 1 x N1 1/2 - Upper - Sec5 825-5027-180 Original
  • 1 x N1 1/2 - Upper - Sec6 825-5027-181 Original
  • 1 x N1 1/2 - Upper - Sec7 825-5027-182 Original
  • 1 x N1 1/2 - Upper - Sec8 825-5027-183 Original
Last Update Of This Product : 24 February 2005

Linkage Maul: 800.10689 Gr.1 and 800.10689 Gr.2

Reference Nr :
  • 05-31-01-001
Description :
  • Linkage Maul: 800.10689 Gr.1 and 800.10689 Gr.2
  • 24 Pieces
Last Update Of This Product : 22 December 2004

IS machine section box Emhart 5inch (21 lines)

Reference Nr :
  • 05-76-23-002
Description :
  • IS machine section box Emhart 5inch (21 lines)
  • 4 pcs available
  • sold "as is"
Last Update Of This Product : 17 July 2014

Delivery Maul 8s 5" DG: deflectors 1 1/8"

Reference Nr :
  • 05-31-00-003
Description :
  • Delivery Maul 8s 5" DG: deflectors 1 1/8", including:
  • 0 x 1 1/8 - Upper - Sec1 & 8 825-5027-80
  • 2 x 1 1/8 - Upper - Sec2 & 7 825-5027-85
  • 2 x 1 1/8 - Upper - Sec3 & 6 825-5027-?
  • 2 x 1 1/8 - Upper - Sec4 & 5 825-5027-90
  • 0 x 1 1/8 - Lower - Sec1 825-5027-95
  • 1 x 1 1/8 - Lower - Sec2 825-5027-100
  • 1 x 1 1/8 - Lower - Sec3 825-5027-105
  • 0 x 1 1/8 - Lower - Sec4 825-5027-110
  • 1 x 1 1/8 - Lower - Sec5 825-5027-115
  • 1 x 1 1/8 - Lower - Sec6 825-5027-120
  • 1 x 1 1/8 - Lower - Sec7 825-5027-125
  • 1 x 1 1/8 - Lower - Sec8 825-5027-130
Last Update Of This Product : 24 February 2005

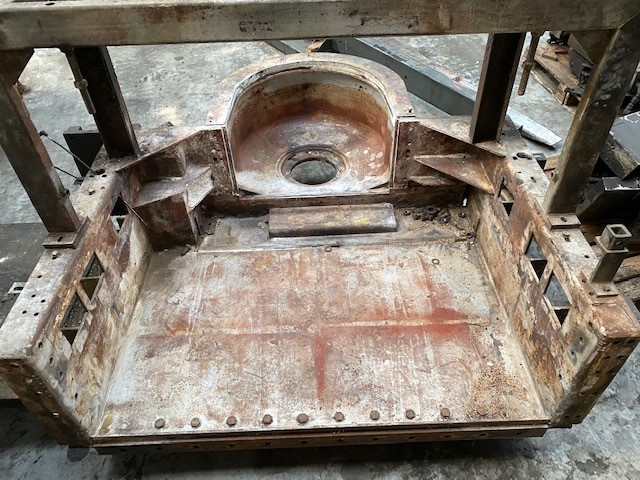

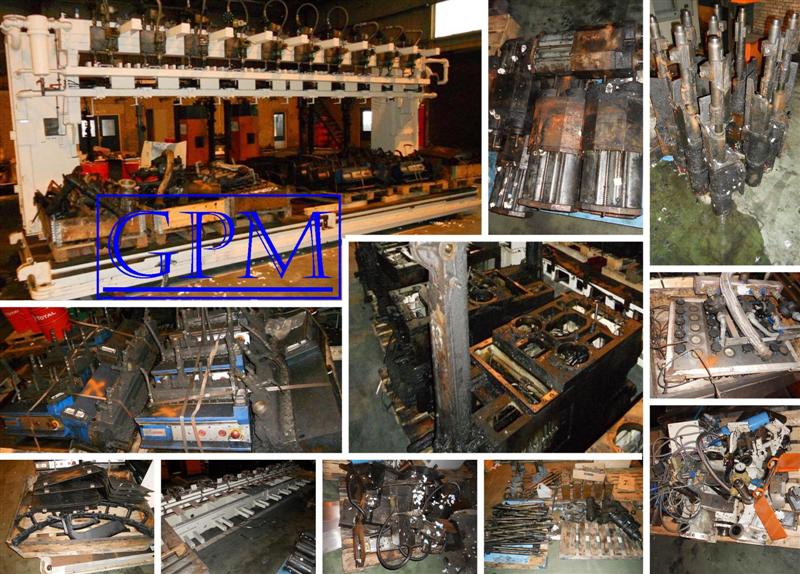

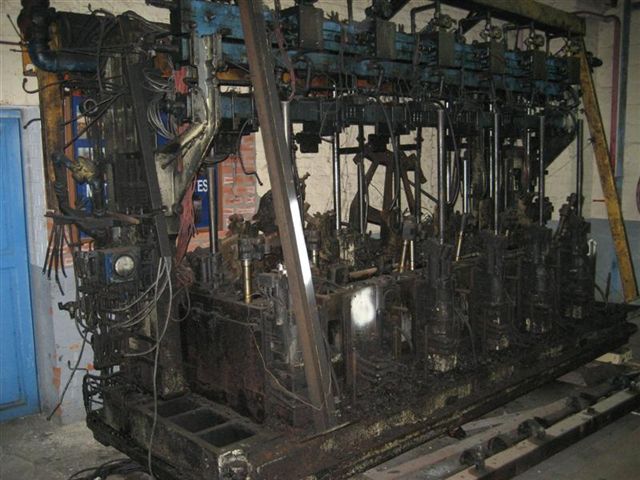

Parts for IS machines

Reference Nr :
  • 05-10-31-021
Description :
  • A 1 pc Complete Frame for IS machine 12 section 5"1/2 Emhart
  • B 12 pcs Section box (empty) for Emhart IS machine 5"1/2 Emhart
  • C 1 pc Conveyor + extension + drive for 12s IS machine Emhart
  • D 12 pcs Blank Mould support braket for IS 5"1/2 Emhart
  • E 12 pcs Blow Mould support braket for IS 5"1/2 Emhart
  • F 8 pcs Vertiflow cylinder housing (2 parts) Emhart 191-28156
  • G 1 pc Cylinder head for baffle mech Emhart 23-7417
  • H 1pc Carter-oil container Emhart 23-6518
  • I 1pc Baffle mech-cylinder cam Emhart 23-5045
  • J 1pc Carter-oil container Emhart 23-5153
  • K 1pc Cam Emhart 23-6517
  • L 2 pcs Cam Emhart 23-15472
  • M 1 pc Cam Emhart 23-17958
  • N 2 pcs Cylinder head Emhart 23-16181
  • O 1 set Compressed air filters Dollinger
Remarks :
  • New or in good condition
  • very attrative price!
  • complete list with unit prices available on request
  • individual pictures available on request

Last Update Of This Product : 20 February 2017

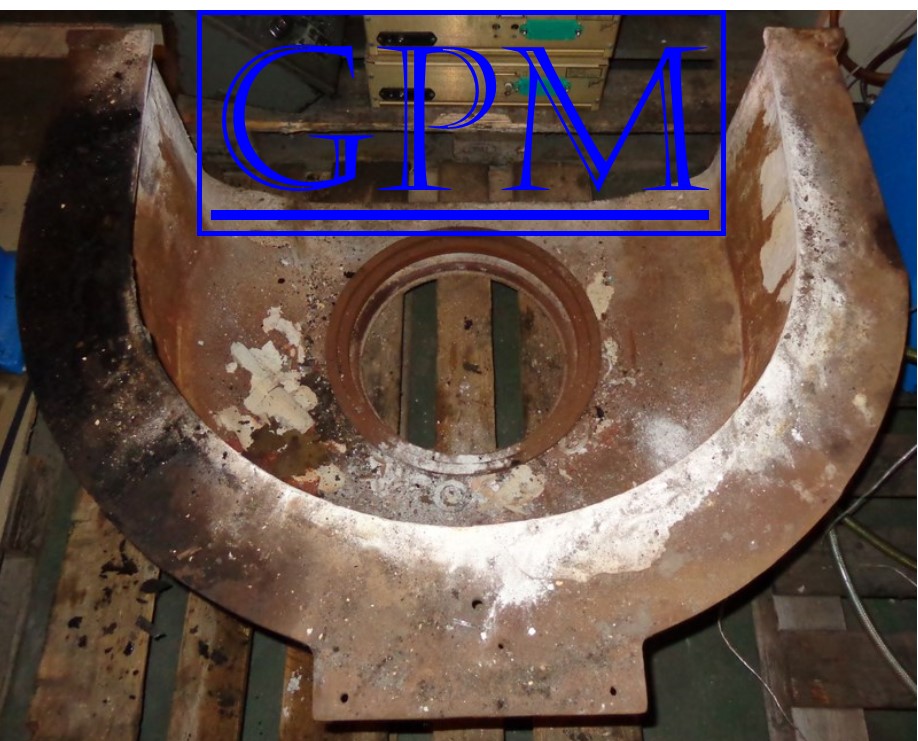

Spout casing Emhart 81

Reference Nr :
  • 05-76-23-001
Description :
  • Spout casing Emhart 81 (deep spout)
Last Update Of This Product : 6 December 2016

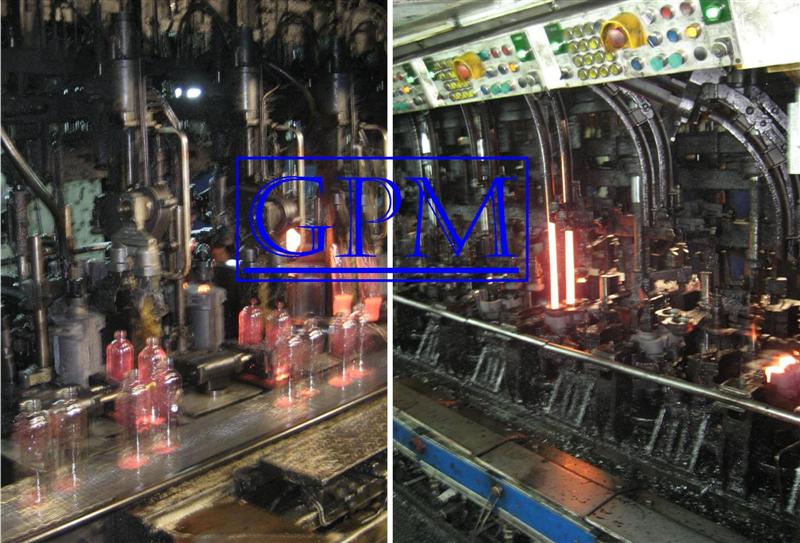

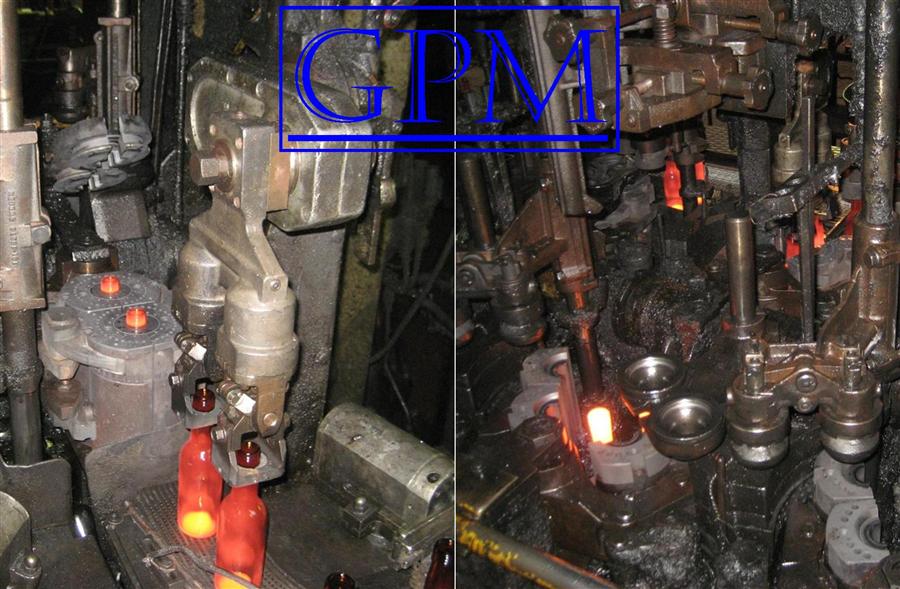

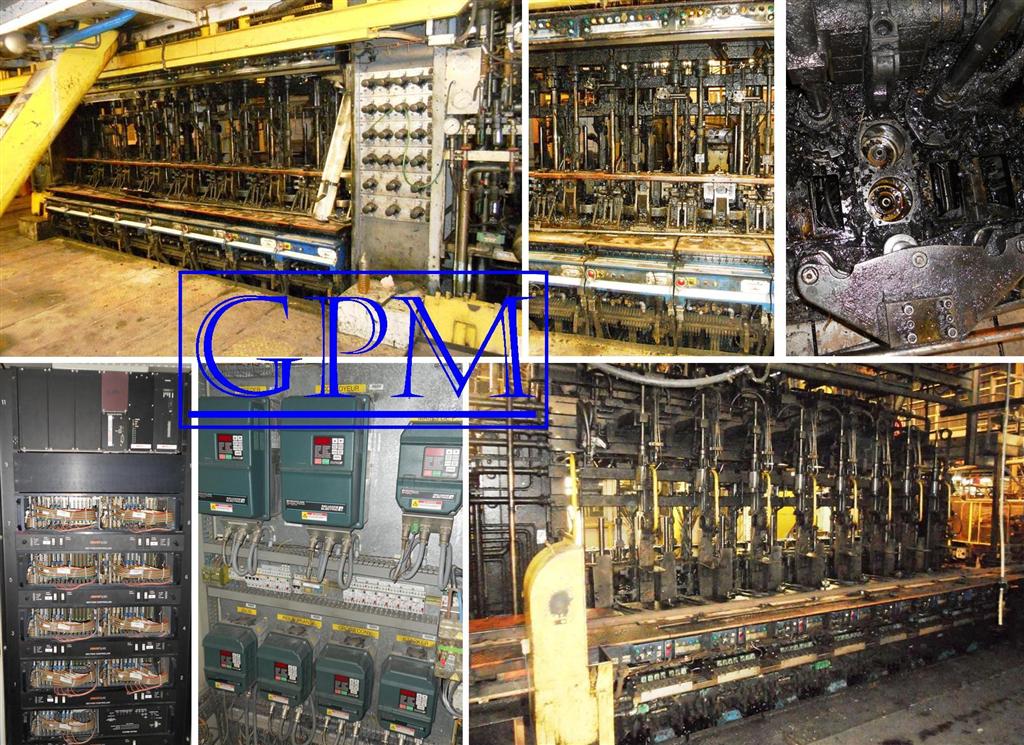

IS machine EMHART 6 sections 4”1/4 QG (QUADRUPLE GOB):

Reference Nr :
  • 05-29-33-001
Description :
  • Type EF
  • Complete from gob distributor to conveyor extension & stacker
  • Electronic timing system: Futronic
  • Drive: Futronic
  • Manufacturing year: 2006
  • Last repair: 2011
  • Are included:
    • Gob distributor: Emhart (mechanical type)
    • All mechanisms (except plunger mech)
    • Conveyor + extension
    • Cross conveyor
    • Lehr stacker Powers
    • Blank side & Blow side Manifolds
    • Mold cooling blower & Frequency drive
  • Are not included:
    • Hot end coating tunnel
    • Transfer wheel
    • Variable equipment
Remarks :
  • In very good condition
  • Documentation available
  • Still in operation – available in October 2017
  • to be dismantled!
  • Very good price
  • other pictures available

Last Update Of This Product : 6 June 2017

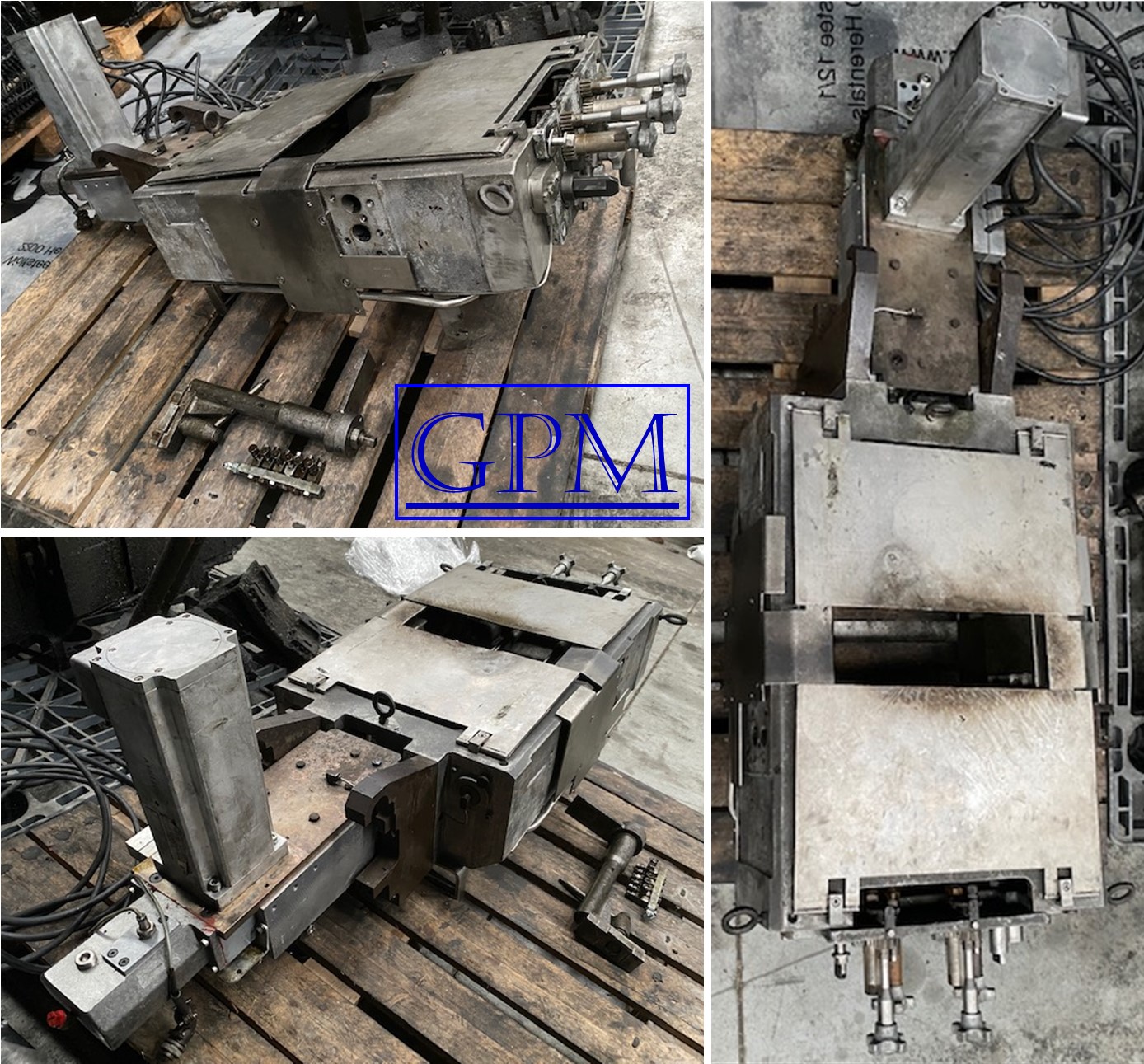

IS machine Pusher Mechanism LH (11pcs – Emhart)

Reference Nr :
  • 05-10-31-002
Description :
  • 1 set (11pcs) IS machine Pusher Mechanism LH
  • make : Emhart (ref. 560-5019)
Remarks :
  • in good condition
  • 11 pcs available

Last Update Of This Product : 7 February 2017

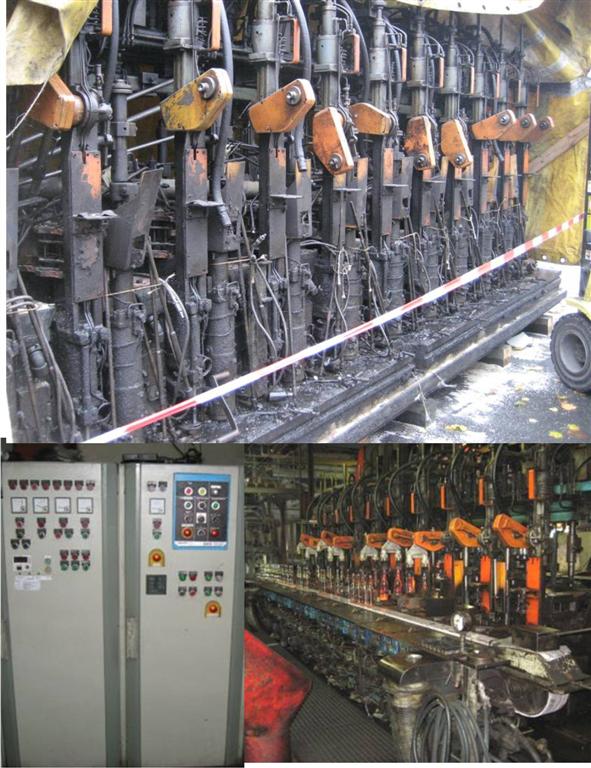

IS machine Bottero 8 sections 4’’1/4 DG

Reference Nr :
  • 05-10-24-001
Description :
  • Scope of supply:
    • Complete machine, from gob distributor to conveyor extension, very clean, with very high level of maintenance.
    • Are included:
      • All mechanisms except plunger mechs (available separately)
      • Delivery supports
      • Conveyor with pushers (Lattimer), conveyor extension with drive
      • Blank side and blow side manifolds (under platform)
    • Are not included:
      • Cables
      • Gob distributor head
      • Variable equipment (scoops, troughs, deflectors, mould holders,…)
      • Hot end coating tunnel (available separately)
      • Mould cooling blower (available separately)
  • Complete rebuild by Bottero in 2002, with electronic timer & drive (EFC200 + EPS120)
  • Last reconditioning by Bottero in 2009
Remarks :
  • Machine is in very good condition (it was used less than 50% of the time and was producing only small articles)
  • Stopped in July 2015 !
  • Movies available

Last Update Of This Product : 3 February 2017

Cooling Nozzle DG (for IS Emhart 4’’1/4)

Reference Nr :
  • 05-53-16-002
Description :
  • Cooling Nozzle DG
  • Including 13 pcs
  • Ref. : 191-13317 Middle
Last Update Of This Product : 31 March 2014

Cooling Nozzle DG (for Emhart 4’’1/4)

Reference Nr :
  • 05-53-17-001
Description :
  • Cooling Nozzle DG
  • Including :
    • 9 pcs ref. 191-13315 RH
    • 10 pcs ref. 191-13316 LH
    • 14 pcs ref. 191-13317 Middle
Last Update Of This Product : 31 March 2014

Cooling Nozzle DG (for Emhart 4’’1/4)

Reference Nr :
  • 05-53-19-001
Description :
  • Cooling Nozzle DG
  • Including :
    • 5 pcs Cooling Nozzle SG narrow
    • 8 pcs Cooling Nozzle DG wide
Last Update Of This Product : 31 March 2014

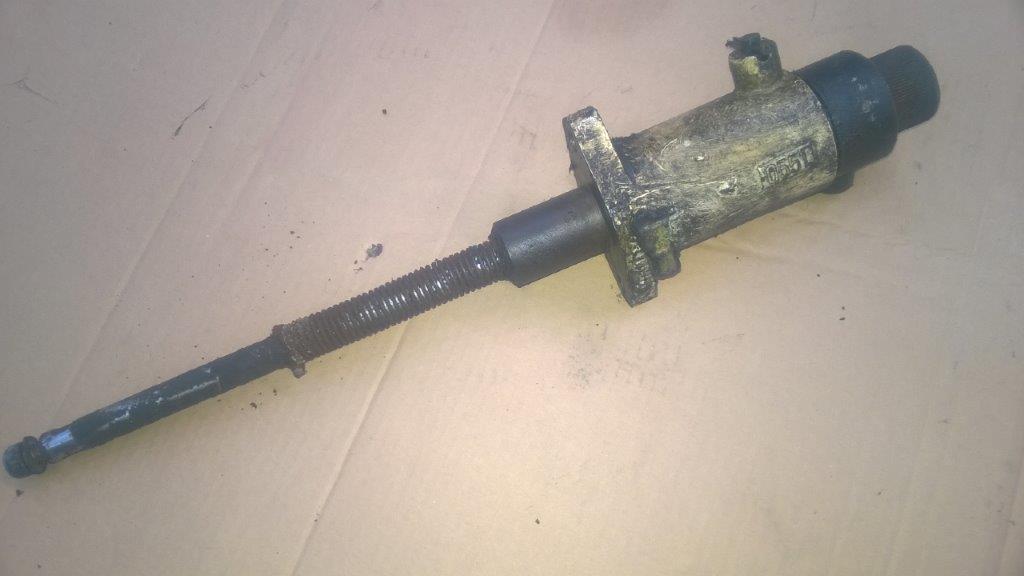

Plungermechanism SG (for Emhart 4’’1/4)

Reference Nr :
  • 05-53-18-001
Description :
  • Plungermechanism SG
  • Ref. : 62-D-10
Last Update Of This Product : 31 March 2014

Take Out Tong Head SG (for Emhart 4’’1/4)

Reference Nr :
  • 05-53-19-004
Description :
  • Take Out Tong Head SG
  • including : 8 pcs
Last Update Of This Product : 31 March 2014

Bafflearm SG (for Emhart 4’’1/4)

Reference Nr :
  • 05-53-20-002
Description :
  • Bafflearm SG
  • including 5 pcs
Last Update Of This Product : 31 March 2014

Holder SG No. 1 Plunger Lock (for Emhart 4’’1/4)

Reference Nr :
  • 05-53-20-004
Description :
  • Holder SG No. 1 Plunger Lock
  • Ref. : 191-5670 Gr.1
  • Including 4 pcs
Last Update Of This Product : 31 March 2014

Holder SG No. 0 (for Emhart 4’’1/4)

Reference Nr :
  • 05-53-20-005
Description :
  • Holder SG No. 0
  • Ref. : 191-5669 Gr.1
  • including 16 pcs
Last Update Of This Product : 31 March 2014

Doubledeckholder SG (for Emhart 4’’1/4)

Reference Nr :
  • 05-53-20-006
Description :
  • Doubledeckhoulder SG
Last Update Of This Product : 31 March 2014

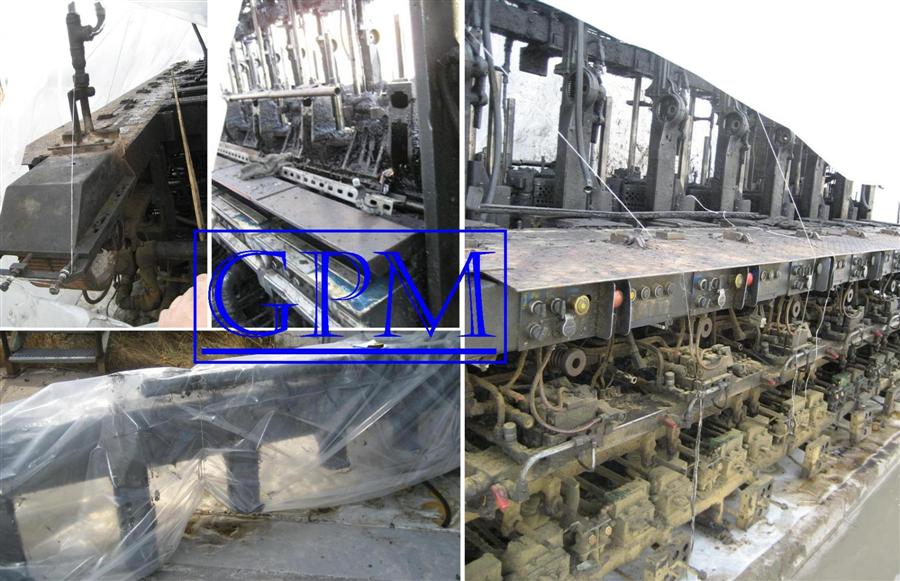

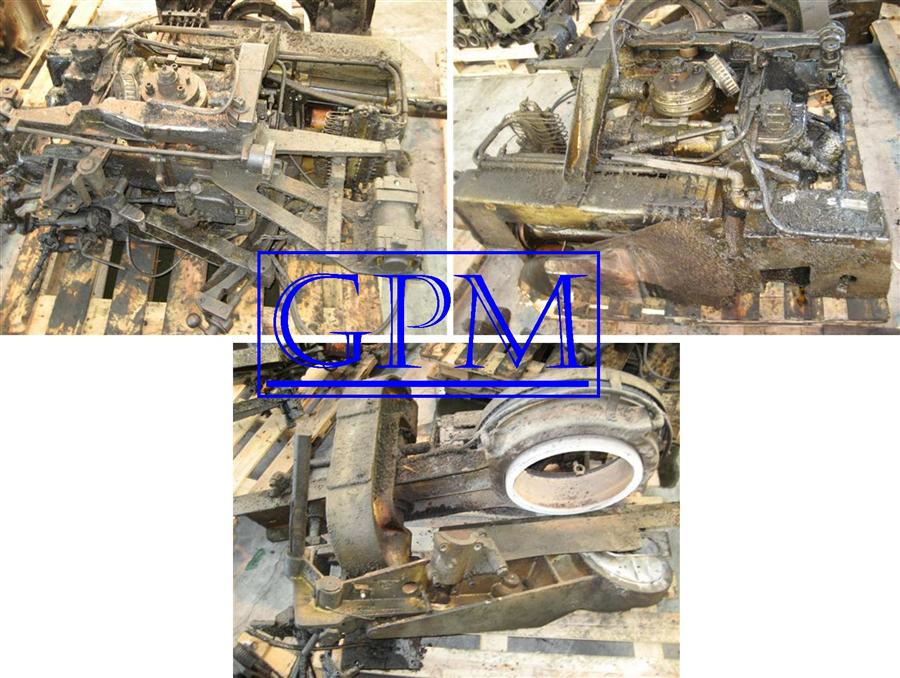

IS machine EMHART 12 sections 5”1/2 DG

Reference Nr :
  • 05-31-00-001
Description :
  • IS machine EMHART 12 sections 5”1/2 DG :
  • Almost complete from gob-distributor to conveyor extension
  • All mechanisms are included (except take-out mechanisms and pushers)
  • No variables included
  • Timing system: Ball (with a lot of spare parts for it)
  • Manufacturing Year : 1992
  • Last revision by complete box exchange : 2001
Remarks :
  • In very good condition
  • Stopped in September 2014
  • Already dismantled and stored dry in our warehouse!

Last Update Of This Product : 29 February 2016

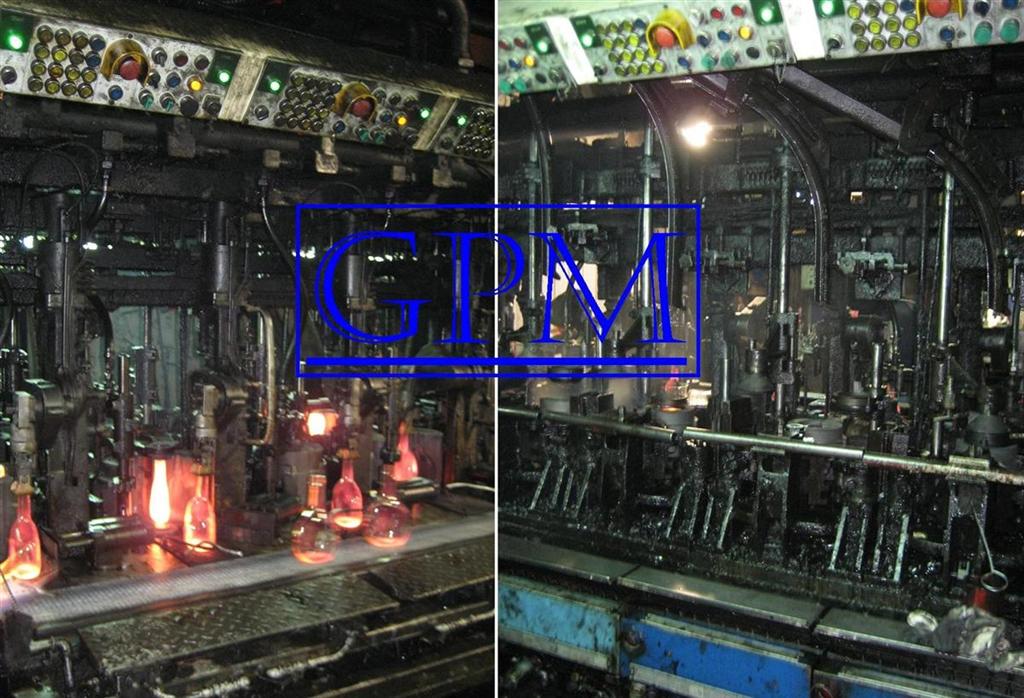

IS machine EMHART 6 sections 4”1/4 TG (TRIPLE GOB):

Reference Nr :
  • 05-29-35-001
Description :
  • Type EF
  • Complete from gob distributor to conveyor extension & stacker
  • Electronic timing system: Futronic
  • Drive: Futronic
  • Manufacturing year: 2005
  • Last repair: 2012
  • Are included:
    • Gob distributor: Emhart (mechanical type)
    • All mechanisms (except plunger mech)
    • Conveyor
    • Cross conveyor
    • Transfer wheel Sheppee

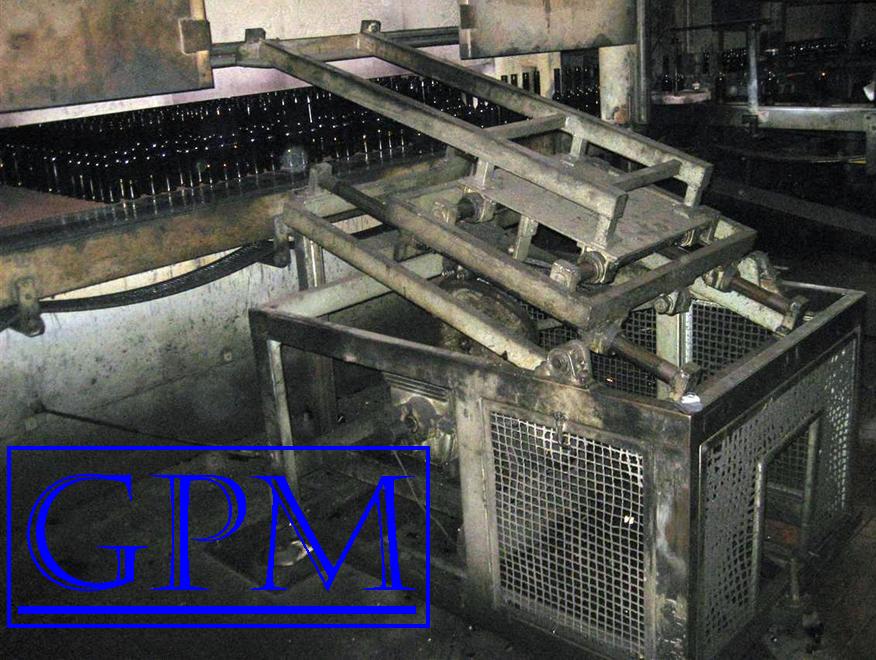

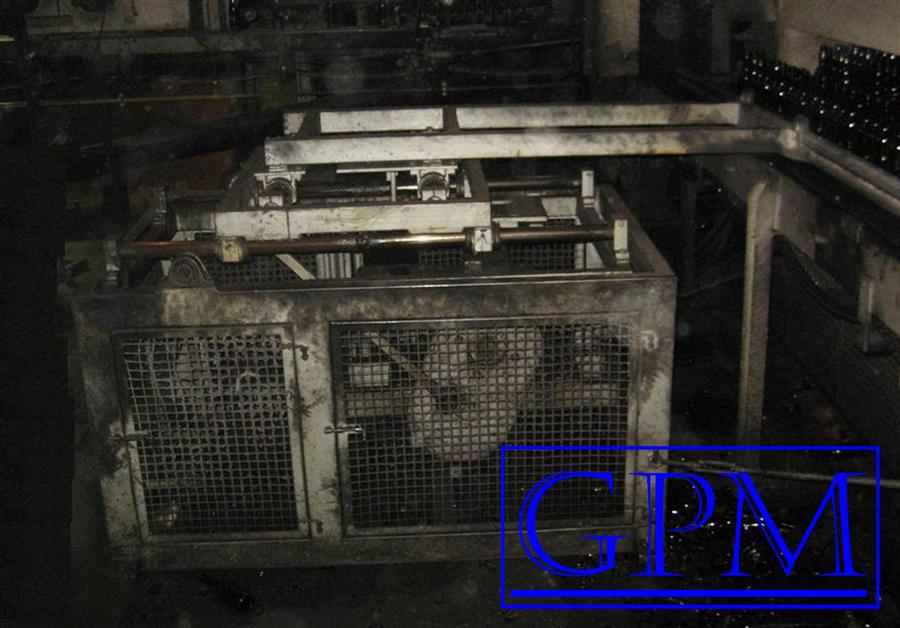

    • Lehr stacker Powers
    • Blank side & Blow side Manifolds
    • Mold cooling blower & Frequency drive
    • Delivery :
      • Supports: for DG & TG
      • Scoops: 1 set in DG & TG
      • Troughs: 1 set DG 02/TG03
      • Deflectors: 1 set DG / TG
  • Are not included:
    • Hot end coating tunnel
    • Variable equipment
Remarks :
  • Was running in DG when picture was made
  • In very good condition
  • Documentation available
  • Still in operation – available in October 2017
  • to be dismantled!
  • very good price
  • other pictures available

Last Update Of This Product : 6 June 2017

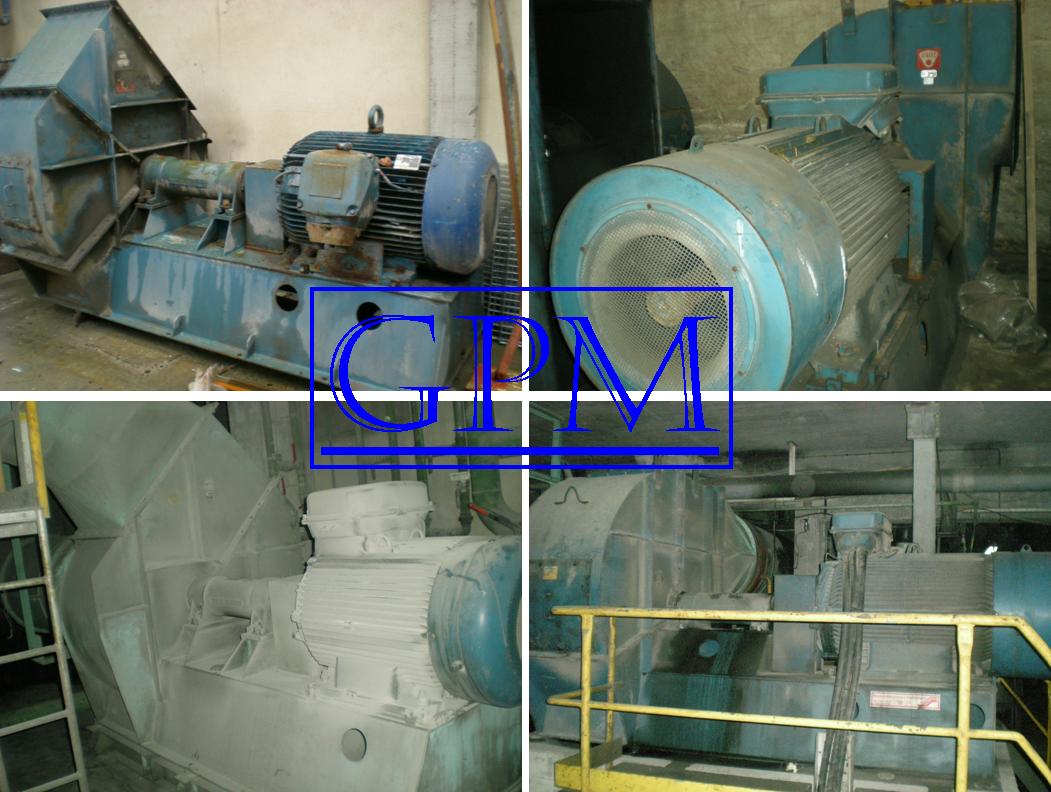

Cooling Fan

Reference Nr :
  • 05-10-31-004
Description :

Cooling Fan :

  • make : SCHIELE
  • 72,15 mbar
  • 166 m/min
  • outlet vertical
  • with motor : EUROMOTOR - 380V - 30kW - 2940rpm
Remarks :
  • complete, in good working condition
  • attractive price !

Last Update Of This Product : 2 June 2015

Cooling Fan

Reference Nr :
  • 05-10-31-005
Description :

Cooling Fan :

  • make : SCHIELE
  • 76,8 mbar
  • 250 m/min
  • outlet vertical
  • motor (missing!) : 380V - 37kW - 2870rpm
Remarks :
  • in good working condition
  • attractive price!

Last Update Of This Product : 2 June 2015

Cooling Fan

Reference Nr :
  • 05-10-31-006
Description :

Cooling Fan :

  • make : SCHIELE
  • 76,8 mbar
  • 250m/min
  • outlet : vertical
  • motor (missing!) : 380V - 37kW - 2870rpm
Remarks :
  • in good working condition
  • attractive price !

Last Update Of This Product : 2 June 2015

Combustion Fan

Reference Nr :
  • 05-10-31-007
Description :

Combustion Fan :

  • make : SCHIELE
  • 71,6 mbar
  • 167m/min
  • outlet : 45
  • with motor : ABB 380V - 37kW - 1480rpm
Remarks :
  • complete, in good working condition
  • attractive price!

Last Update Of This Product : 24 January 2017

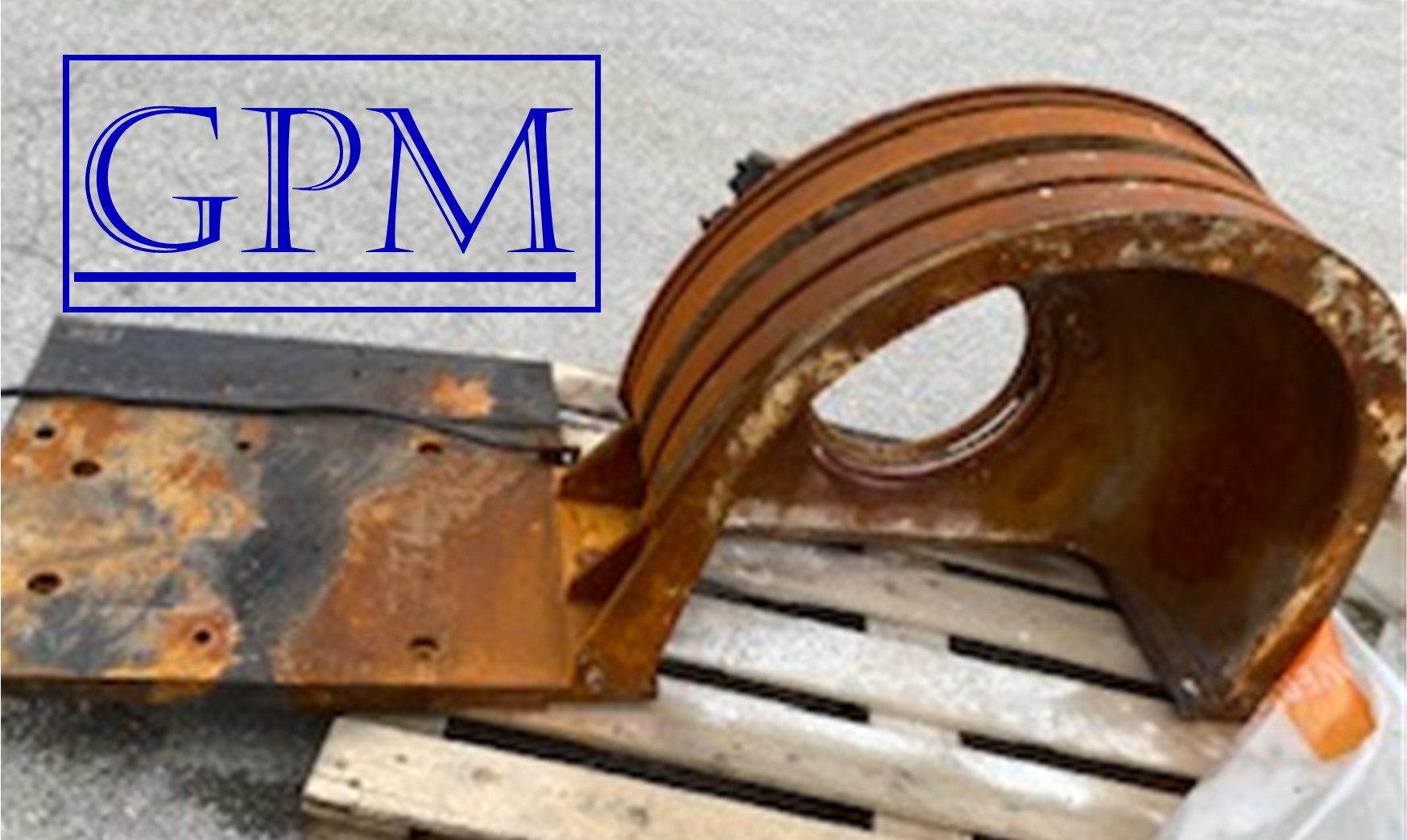

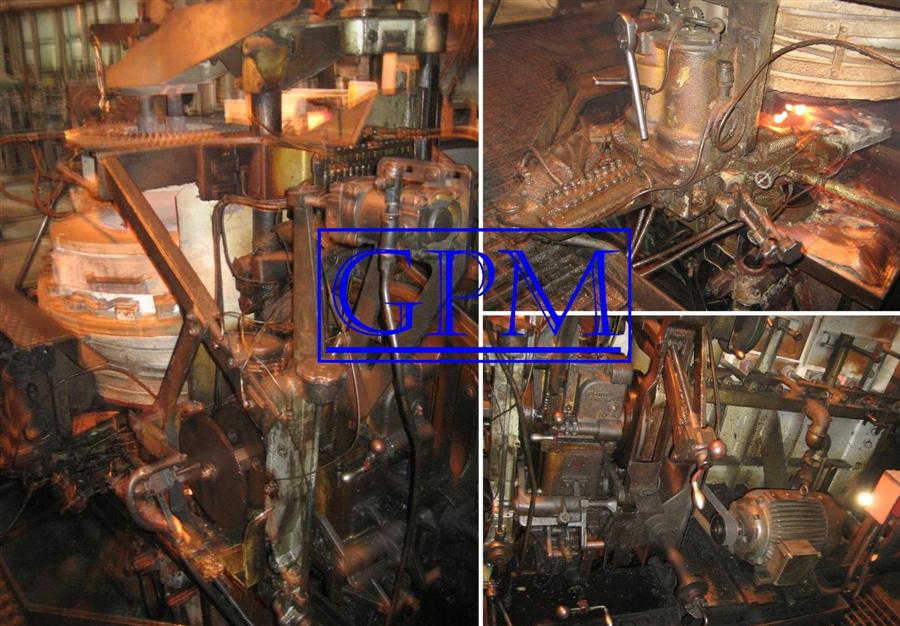

Feeder-mechanism Emhart 503 with rotating tube mech

Reference Nr :
  • 05-10-31-008
Description :
  • Complete feeder mechanism Emhart 503, including:
  • Feeder mechanism itself
  • Motor
  • Plunger support
  • Rotating tube mechanism with motor
Remarks :
  • Complete, in very good working condition
  • Stopped end of Sept 2014
  • Spout casing and shear mech are also available
  • Very attractive price!

Last Update Of This Product : 1 September 2015

Spout casing Emhart 503

Reference Nr :
  • 05-10-31-009
Description :
  • Spout casing Emhart 503
Remarks :
  • Very attractive price!

Last Update Of This Product : 1 September 2015

Cooling Fan (Mould blower)

Reference Nr :
  • 05-10-72-006
Description :

Cooling Fan (Mould blower) :

  • make : CBI type CHA33SM
  • 1000mmWG
  • 500m/min
  • outlet : 45
  • with motor : EFACEC 380V - 200kW
Remarks :
  • complete, in good working condition
  • very attractive price!

Last Update Of This Product : 2 June 2015

Mechanisms for IS machines

Reference Nr :
  • 05-10-31-020
Description :
  • A 15 pcs Neck Ring mechanism Emhart
  • B 15 pcs Invert mechanism Emhart
  • C 1 pc Invert mechanism Piston Emhart 191-5608-2
  • D 26 pcs Plunger mechanism DG (4"1/4-5"-5"1/2) Emhart
  • E 3 pcs Plunger mechanism SG 4"1/4 Emhart
  • F 15 pcs Pusher mechanism LH Heye
  • G 11 pcs Pusher mechanism LH Emhart 560-5019
  • H 12 pcs Take out mech 5"1/2 DG Emhart
  • I 12 sets Mould Opening Closing mechanism (MOC) Emhart
  • J 12 sets Mould shaft Blank side (2pcs) with lever Emhart
  • K 12 sets Mould shaft Blow side (2pcs) with lever Emhart
  • L 12 pcs Bottom plate mechanism 5"1/2 DG Emhart
  • M 12 pcs Blow Head mechanism 5"1/2 DG Emhart
  • N 12 pcs Funnel mechanism 5"1/2 DG Emhart
  • O 12 pcs Baffle mechanism 5"1/2 DG Emhart
Remarks :
  • In very good condition
  • Very attractive price
  • Complete list with unit prices available on request
  • Individual pictures available on request

Last Update Of This Product : 20 February 2017

Shear mechanism Emhart 503

Reference Nr :
  • 05-10-31-010
Description :
  • Shear mechanism (mechanical) Emhart 503
Remarks :
  • Very attractive price!
  • Angular Shearing also available (see ref. 05-10-31-017)

Last Update Of This Product : 7 February 2017

Hot end Coating tunnel

Reference Nr :
  • 05-10-31-011
Description :
  • 1 pc hot end coating tunnel, complete:
    • To put on the conveyor just behind the IS machine
    • For bottles with maximum height of 35cm
    • Dosing pump not included
      • Manufactured by IMACA
      • Manufacturing Year: unknown
      • In good working condition
Last Update Of This Product : 13 June 2017

Delivery Troughs (1 set for IS10s DG Nr 0-2)

Reference Nr :
  • 05-10-72-008
Description :
  • 1 set Delivery Troughs (20 pcs):
    • For Double Gob
    • Size 0-2
    • Special coating inside
Remarks :
  • Absolutely new!!! (never used!)

Last Update Of This Product : 26 February 2016

Rotating Tubes 10 inches (PSR 333)

Reference Nr :
  • 05-10-72-007
Description :
  • 1 set Rotating tubes (9 pcs):
    • Diameter: 10 inches
    • Length: 665mm
    • Material: PSR 333
    • Some are without holes, some with 3 holes and some with 4 holes
Remarks :
  • Absolutely new!!! (never used!)

Last Update Of This Product : 26 February 2016

IS machine GPS 8 s 5”DG

Reference Nr :
  • 05-75-01-003
Description :
  • IS machine 8 s 5” DG
  • Complete from feeder-mech to conveyor extension
  • Manufacturing year : 1998 (by GPS – Germany) - Emhart compatible
  • Including all mechanisms
  • With servo feeder-mech (GPS) and servo gob-distributor (GPS)
  • Including Timing and Drive (GPS)
  • 1 set variable equipment included!
Remarks :
  • Has been stopped in September 2016
  • In very good condition, ready to run (partially overhauled)

Last Update Of This Product : 2 February 2017

IS machine GPS 8 s 5”DG

Reference Nr :
  • 05-75-01-004
Description :
  • IS machine 8 s 5” DG
  • Complete from feeder-mech to conveyor extension
  • Manufacturing year : 1998 (by GPS – Germany) - Emhart compatible
  • Including all mechanisms
  • With servo feeder-mech (GPS) and servo gob-distributor (GPS)
  • Including Timing and Drive (GPS)
  • 1 set variable equipment included!
Remarks :
  • Has been stopped in September 2016
  • In very good condition, ready to run (partially overhauled)

Last Update Of This Product : 2 February 2017

1 set Cams

Reference Nr :
  • 05-10-24-002
Description :
  • Shear cams
  • Plunger cams
  • list available on request
Remarks :
  • used but in good condition

Last Update Of This Product : 12 December 2016

Variable equipment for IS machines

Reference Nr :
  • 05-10-31-022
Description :
  • A 1 pc Through supports-Spider for Emhart 12s DG 5"1/2 Emhart
  • B 1 set Through supports for Emhart 12s DG 5"1/2 Emhart
  • C 1set Deflector supports for Emhart 12s DG 5"1/2 Emhart
  • D14 pcs Funnelarm DG 5"1/2 - Diam 90 Emhart 23-5203
  • E 17 pcs Baffle arm DG 5"1/2 Emhart 23-8421
  • F 12 pcs Mould holder DG 5"1/2 with radial cooling Emhart
  • G 28 pcs Mould holder 4"1/4 DG Emhart 191-18915
  • H 18 set Neck ring arm 4"1/4 DG Emhart 191-23387
  • I 8 pcs Pusher arm Lattimer 4"1/4 DG Lattimer L 84200100
  • J 12 pcs Pusher arm 4"1/4 DG Heye ?
  • K 12 pcs Take out tong arm Emhart 200-10847
  • L 1pc Take out tong arm Supplier?
Remarks :
  • in very good condition
  • very attractive price
  • complete list with unit prices available on request
  • individual pictures are available on request

Last Update Of This Product : 6 March 2017

Spare parts for IS machines

Reference Nr :
  • 05-10-31-023
Description :
  • A 1 pc Stop plate L Emhart 191-11328
  • B 12 pcs Stop plate R Emhart 191-11329
  • C 5 pcs earings Supplier?
  • D 10 pcs Valve 21 bar - 24 VDC Numatics B1LSAD30HSA4061
  • E 1 pc Bague (bushing?) Emhart 23-6261
  • F 120 pcs Plunger positioner NNPB Heye
  • G 1 pc Bottom plate support adapter Emhart 191-21451
  • H 1 pc Reductor type NRV040 Moto Vario 600-3717
  • I 3 pcs Bottom plate support adapter Emhart 191-7202-1
  • J 3 pcs Distributor 1,5-10 bar Ross 02-173-A5-981
  • K 5 pcs Valve (double) Numatics N0233
  • L 2 pcs Valve Ross 0215182001
Remarks :
  • new or in very good condition
  • very attractive price
  • complete list with unit prices available on request
  • individual pictures are available on request

Last Update Of This Product : 7 March 2017

Cooling parts for IS machines

Reference Nr :
  • 05-10-31-024
Description :
  • A 58 pcs Cooling nozzle double 1" - Aluminium Emhart 191-23889
  • B 12 pcs Cooling nozzle single 1" - Aluminium Emhart 191-23898
  • C 34 pcs Cooling spacer double 1"1/2 - Aluminium Emhart 200-10649
  • D 8 pcs Cooling spacer single 1"1/2 - Aluminium Emhart 200-10654
  • E 30 pcs Cooling valves Emhart 101-564
  • F 13 pcs Vertiflow plates 5" Emhart
  • G 24 pcs Radial cooling nozzle 5"1/2 Heye
  • H 13 pcs Cooling Nozzle DG (for IS 4’’1/4) Emhart 191-13317 Middle
  • I 9 pcs Cooling Nozzle DG (for IS 4’’1/4) Emhart 191-13315 RH
  • J 10 pcs Cooling Nozzle DG (for IS 4’’1/4) Emhart 191-13316 LH
  • K 14 pcs Cooling Nozzle DG (for IS 4’’1/4) Emhart 191-13317 Middle
  • L 8 pcs Cooling Nozzle DG Wide (for IS 4"1/4) Emhart
  • M 5 pcs Cooling Nozzle DG Narrow (for IS 4"1/4) Emhart
Remarks :
  • new or in very good condition
  • very attractive price
  • complete list with unit prices available on request
  • individual pictures are available on request

Last Update Of This Product : 7 March 2017

Servo Gob Distributor (Heye) for IS machines

Reference Nr :
  • 05-10-31-025
Description :
  • A 1 pc Selective Gob Distributor - Servo - 12 section Heye
  • B 1 pc Lubrification pump for servo gob Distributor Heye
  • C 2 pcs Control cabinet for servo gob Distributor Heye
  • D 1 pc Spare motor for servo gob Distributor Heye
Remarks :
  • in very good condition
  • very attractive price

Last Update Of This Product : 7 March 2017

Angular Shearing (Emhart)

Reference Nr :
  • 05-10-31-017
Description :
  • 1 pc Angular shearing Emhart 194-5457
Remarks :
  • in very good condition
  • very attractive price

Last Update Of This Product : 7 March 2017

Stacker Push Bars

Reference Nr :
  • 05-10-31-026
Description :
  • 1 pc Stacker push bar L: 2,9m - d: 8cm
  • 1 pc Stacker push bar L: 2,9m - d: 8,5cm
  • 1 pc Stacker push bar : L: 2,9m - d: 18cm
  • 1 pc Stacker push bar : L: 2,4m - d: 12cm
Remarks :
  • in very good condition
  • very attractive price

Last Update Of This Product : 7 March 2017

IS machine Emhart 8 sections 4’’1/4 DG

Reference Nr :
  • 05-32-54-001
Description :
  • IS machine Emhart 8 sections 4’’1/4 DG :
    • BB, PB, Right Hand
    • Timing: Bottero Apilog
    • Drive: Danfoss VLT
    • Pusher: Lattimer
    • Conveyor & extension included
    • Not included : feeder mech, gob distributor, shear mech
    • Manufacturing year : 1972
    • Last repair : 2002
Remarks :
  • In good working condition
  • Still in operation
  • Available in October 2017
  • To be dismantled!

Last Update Of This Product : 27 July 2017
