Auxiliary Equipment

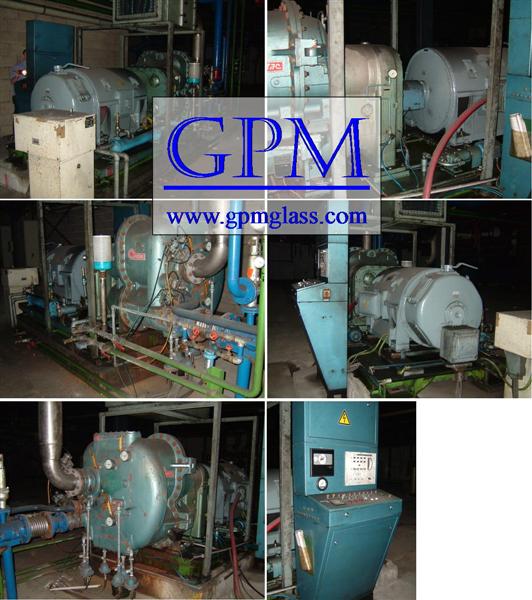

Compressor Ingersoll-Rand CENTAC

Reference Nr :
  • 13-55-00-091
Description :
  • Compressor Ingersoll-Rand(Centac),
  • Type C21 MX4 (centrifugal - 4 stages),
  • Flow +/- 60 m3/min,
  • Pressure 10.5bar,
  • Construction year 1976,
  • Power motor 5000V - 400KW,
  • Speed 2955rpm,
  • With mechanical starter.
Remarks :
  • Dismantled

Last Update Of This Product : 17 February 2005

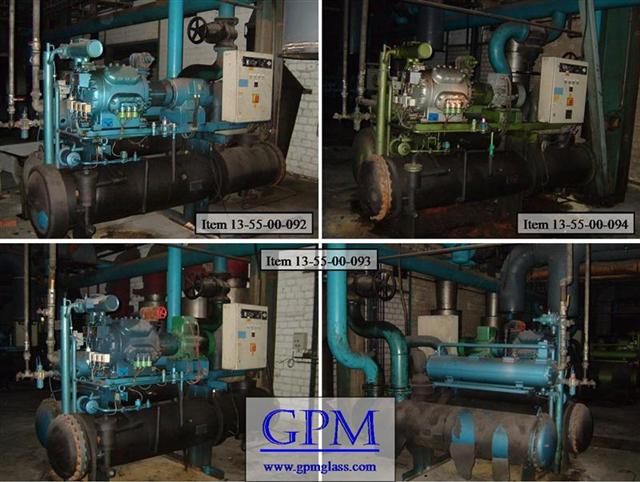

Compressed air cooler

Reference Nr :
  • 13-55-00-092
  • 13-55-00-093
Description :
  • Compressed air cooler
  • Including compressor type CM014Y
  • Coolant R22
  • Flow: 75m3/h
Remarks :
  • Dismantled

Last Update Of This Product : 19 November 2004

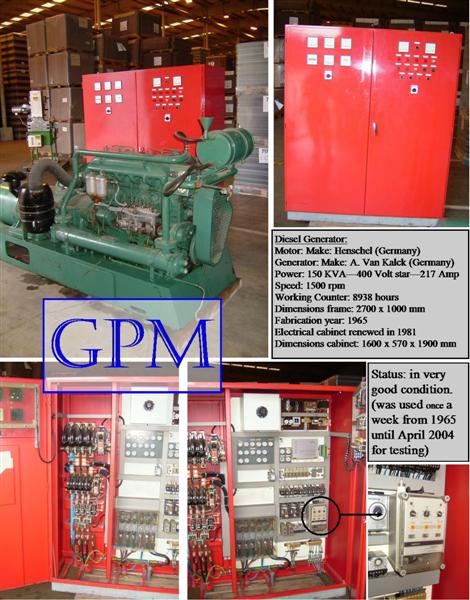

Diesel Power Generator Henschel 150 KVA

Reference Nr :
  • 13-31-00-015
Description :
  • Diesel Power Generator Henschel - A. Van Kalck (Germany)
  • Power: 150 KVA - 400V - 217 Amp
  • In very good condition
  • With electrical cabinet (for synchronisation, ....)
Remarks :
  • Dismantled
  • cooling radiator is missing

Last Update Of This Product : 19 November 2004

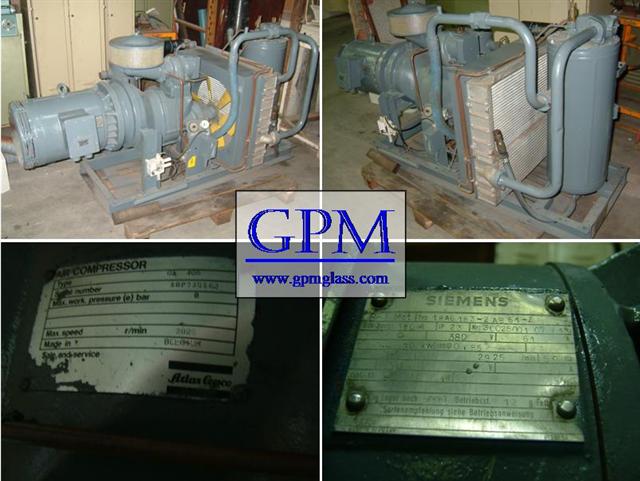

Compressor ATLAS COPCO GA408

Reference Nr :
  • 13-71-03-001
Description :
  • Compressor ATLAS COPCO Type GA 408.
  • Pressure 8bar.
  • Flow: 72 l/s (4.3 m3/min).
  • Motor Siemens 30KW.
  • Speed: 2925 rpm.
  • Dimensions: 2305 x 1136 x 1250mm.
  • Weight: 885 kg.
  • Competely overhauld.
Last Update Of This Product : 26 November 2004

AC-Drives (Berges) - PLC (Siemens)

Reference Nr :
  • 13-55-01-001
Description :
  • AC-Drives - Frequency Inverters
  • Make: BERGES Electronic (manual available)
  • 3 x Type ACM - 0.75KW - 3.37A - Option: 9100-01
  • 3 x Type ACM D2 - 0.75KW - 3.4A
  • 1 x Type ACM D2 - 0.75KW - 3.5A
  • 1 x Type ACM D0 - 0.75KW - 3.5A
  • PLC system Siemens
  • 1 x S5-101U - Processor 6ES5 101-8UA13
  • 1 x S5-101U - Expansion unit 6ES5 101-8UC11
  • 1 x S5-BT777 - Sinec L1 + cable 6ES5 707-0BC00
  • 1 x S5 - Power supply 3A
  • 1 x OP-393 - II Operator Console 6ES5 393-0UA12
Last Update Of This Product : 23 March 2006

Diesel Power Group - 1000KVA

Reference Nr :
  • 13-27-02-001
Description :
  • Diesel Power Group
  • Make generator: Général d’Electricité
  • Type generator: Synchrone alternator type PA100/4
  • Make motor: SACM
  • Type motor MGO V12BSHR
  • Fuel: light oil
  • Speed: 1500 rpm
  • Power: 1000 KVA
  • Voltage: 380/220 V
  • Current: 1520 Amps
  • Frequency: 50Hz
  • Manufacturing year: 1962
  • Running hours 881 hours
  • Last overhaul: Overhaul injection pump in 1993; Overhaul regulator in 1998
Remarks :
  • In very good operation conditions.
  • To Dismantle.

Last Update Of This Product : 24 March 2006

Manometers - Pressure Transducer and Regulator - Air/gas Mixer & Zero Governer

Reference Nr :
  • 13-55-01-002
Description :
  • Manometers with mambranes
  • 1 x 0-40mbar - 10cm diam.; 1/2" male connection
  • 1 x 0-60mbar - 10cm diam.; 1/2" male connection
  • 1 x 0-100mbar - 10cm diam.; 1/2" male connection
  • 2 x 0-40mbar - 15cm diam.; 1/2" male connection
  • 1 x 0-100mbar - 15cm diam.; 1/2" male connection
  • 1 x 0-10bar - 15cm diam.; 1/2" male connection; transducer 220V - 0..20mA
  • Manometers without mambranes
  • 2 x 0-60mbar - 10cm diam.; 1/2" male connection
  • 1 x 0-100mbar - 10cm diam.; 1/2" male connection
  • Pressure transducer
  • Make Hundsbach
  • 1 x AH77630-G1111-B200 - 220V-ac - 0..200mbar - 0-20mA
  • 1 x AH77630-H1211-B100 - 220V-ac - -8..+2mbar - 0-20mA
  • Pressure regulator
  • Make: Krom Schroder
  • Type: GI25R02 - Pressure: 0.2 .. 120mbar - V: 32m3/h air
  • Air/gas mixer
  • Make: FIB - Type: MM 0120B
  • Zero Governer Gas
  • Make: BZR - Type: 94-C20
  • Control valves for hot water/steam
  • Make: Kieback & Peter
  • 2 x RGD 15/0.63 MC200-R1 - DN15; PN25; Kvs 0.63; Delta P 25bar
  • 1 x RV80 V-24-E7-R1-A90/V - DN80; PN16
Last Update Of This Product : 10 December 2004

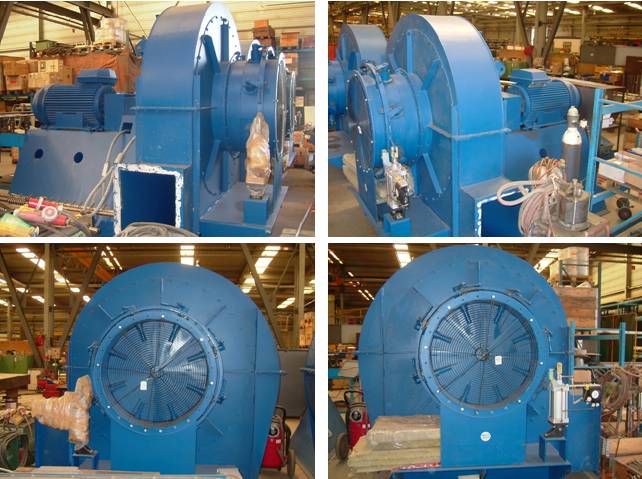

Quench Fan (De Raedt) 20 m3/s - 1200 DaPa

Reference Nr :
  • 13-09-01-001
Description :
  • Quench Fan Make De Raedt
  • Type KG160DO
  • Flow 20m3/sec
  • Pressure 1200 DaPA
  • Speed 1490 rpm
  • Absorbed Power 285 kW
  • Installed Power 315 kW
  • Make of motor ABB
  • Year of construction 2001
  • Including control cabinet with frequency inverter (ABB)
  • Including pneumatic operated inlet vanne
Remarks :
  • Dismantled
  • As NEW

Last Update Of This Product : 11 February 2005

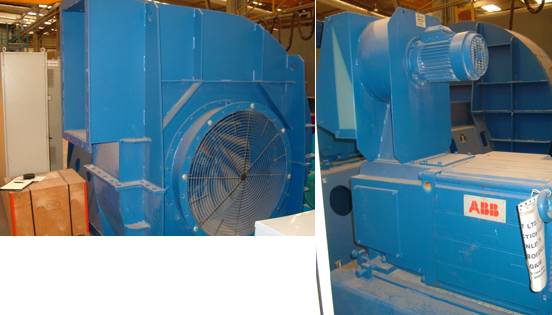

Quench Fan (De Raedt) 21 m3/s - 1800 DaPa

Reference Nr :
  • 13-09-01-002
Description :
  • Quench Fan Make De Raedt
  • Type KE150AO
  • Flow 21m3/sec
  • Pressure 1800 DaPA
  • Speed 1884 rpm
  • Absorbed Power 436.5 kW
  • Installed Power 230 kW (Duty cycle: 25sec at 436.6 kW; 105sec at 120 kW)
  • Make of motor ABB (DC-motor)
  • Year of construction 2001
  • Including control cabinet with speed control (ABB)
Remarks :
  • Dismantled
  • As NEW

Last Update Of This Product : 11 February 2005

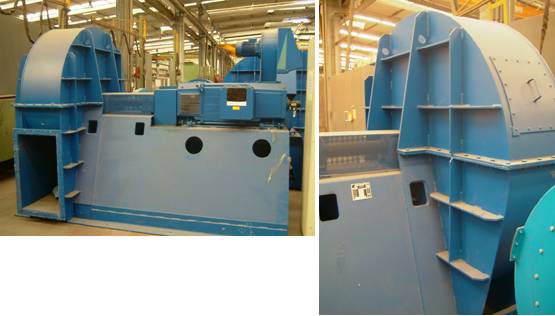

Quench Fan (De Raedt) 24.5 m3/s - 1800 DaPa

Reference Nr :
  • 13-09-01-003
Description :
  • Quench Fan Make De Raedt
  • Type TE150AO
  • Flow 24.5 m3/sec
  • Pressure 1800 DaPA
  • Speed 1909 rpm
  • Absorbed Power 498.7 kW
  • Installed Power 335 kW
  • Make of motor ABB (DC-motor)
  • Year of construction 2001
  • Including control cabinet with speed control (ABB)
  • Including Power transformer (Prim. 400V-3Ph-50/60Hz) + Bridge, Make Bromsgrove Winding Services
Remarks :
  • Dismantled
  • As NEW

Last Update Of This Product : 11 February 2005

Cooler/Quench Fan (De Raedt) 10 m3/s - 330 DaPa

Reference Nr :
  • 13-09-01-004
Description :
  • Cooler/Quench Fan Make De Raedt
  • Type LF080DO
  • Flow 10m3/sec
  • Pressure 330 DaPA
  • Speed 2003 rpm
  • Absorbed Power 39.5 kW
  • Installed Power 48 kW
  • Make of motor ABB
  • Year of construction 2001
  • With inlet and outlet vanne
Remarks :
  • Dismantled
  • As NEW

Last Update Of This Product : 17 November 2005

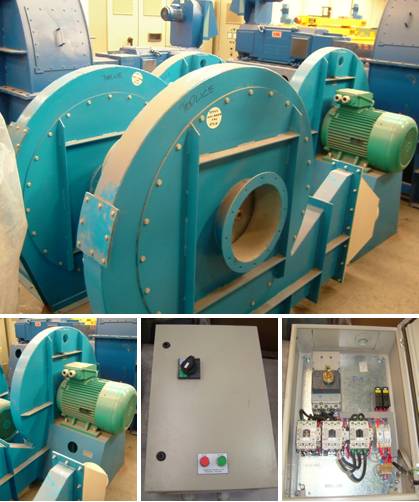

Quench Fan (Birmingham Fan) 1.55 m3/s - 1800 DaPa

Reference Nr :
  • 13-09-01-005
Description :
  • Quench Fan Make Birmingham Fan Suppliers
  • Type 1000 BCMA
  • Flow 1.55m3/sec
  • Pressure 1800 DaPA
  • Speed 2980 rpm
  • Absorbed Power 39.4 kW
  • Installed Power 45 kW
  • Make of motor Brook Crompton
  • Year of construction 2002
  • Including coltrol cabinet (Star/Delta)
Remarks :
  • Dismantled
  • As NEW

Last Update Of This Product : 11 February 2005

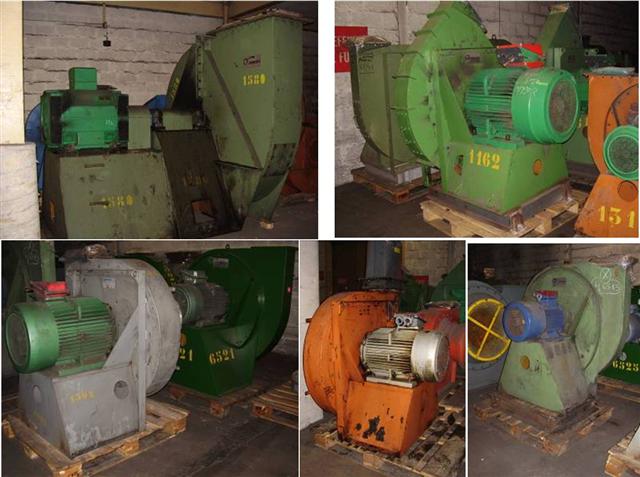

Several used fans available

Reference Nr :
  • 13-27-03-011
Description :
Type Flow Pressure Coupling Manufac.Year
(m3/s) (mmWG)
50-06 1.5 450 Direct 1964
CM443E168 1.5 450 Direct 1969
DS42 1.5 200 Direct 1973
DS42 1.5 200 Direct 1983
HD23 0.3 420 Direct 1976
HD23 0.3 420 Direct 1979
HD23 0.3 420 Direct
HD46K 1.5 450 Direct 1974
HD65JR 1.0 850 Direct 1974
HD65JR 1.0 850 Direct 1972
HD85JR0 1.0 1400 Direct 1974
HD85JR1 1.0 1400 Direct 2004
HD85JR1 1.0 1400 Direct 1968
HD85JR1 1.0 1400 Direct 1970
HD85JR1 1.0 1400 Direct 1971
HD86KR1 1.7 1400 Direct 1980
HD86KR4 2.0 1400 Direct 1980
HD87LR0 3.0 1050 Direct 1982
HD87LR0 3.0 1050 Direct 1981
HD87LR4 3.0 1050 Direct 1978
HD87LR4 3.0 1050 Direct 2004
HD87LR4 3.0 1050 Direct 2004
HF4S 18.0 1100 Coupling 1981
LB39 2.0 100 Direct 1966
Last Update Of This Product : 18 May 2006

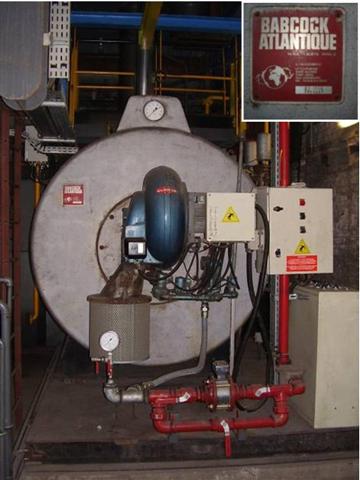

Steam boiler Babcock - Lardet

Reference Nr :
  • 13-27-03-014
Description :
  • Steam boiler Babcock - Lardet
  • Volume: 2.75m3
  • Pressure: 12 Bar
  • Capacity: 15 Ton/h steam at 192°C
  • Last technical check 2005
  • Manufacturing year: 1972
Remarks :
  • To Dismantle

Last Update Of This Product : 4 April 2006

Diesel Power Group - 2250KVA

Reference Nr :
  • 13-27-04-001
Description :
  • Diesel Power Group
  • Make generator: Unelec - Type PA 100 G 50/4P
  • Make motor: SACM - Type AGO 195 SHRSIH - 16 cylinders
  • Fuel: light oil
  • Speed: 1500 rpm
  • Power: 2250 KVA
  • Voltage: 380/220 V
  • Frequency: 50Hz
  • Manufacturing year: 1980
  • Running hours 1100 hours and 1200 hours (2 machines available)
  • Completely renewed in 1993
  • Including transformer 380/15000V - Make Cem - Type NpTI

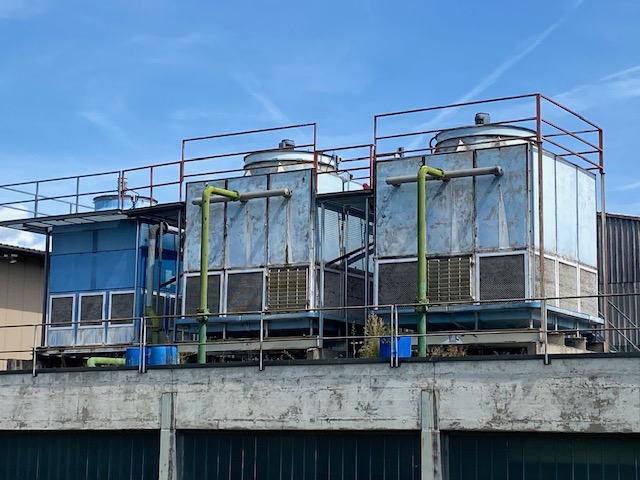

  • Including cooling tower for cooling water
Remarks :
  • In good working conditions

Last Update Of This Product : 18 October 2006

Diesel Power Group for spare parts - 2250KVA

Reference Nr :
  • 13-27-04-002
Description :
  • Diesel Power Group
  • CAN BE USED AS SPARE PARTS FOR ITEM 13-27-04-001
  • Make generator: Unelec - Type PA 100 G 50/4P
  • Make motor: SACM - Type AGO 195 SHRSIH - 16 cylinders
  • Fuel: light oil
  • Speed: 1500 rpm
  • Power: 2250 KVA
  • Voltage: 380/220 V
  • Frequency: 50Hz
  • Manufacturing year: 1980
  • Running hours 1500 hours
  • Including transformer 380/15000V - Make Cem - Type NpTI
Last Update Of This Product : 18 October 2006
